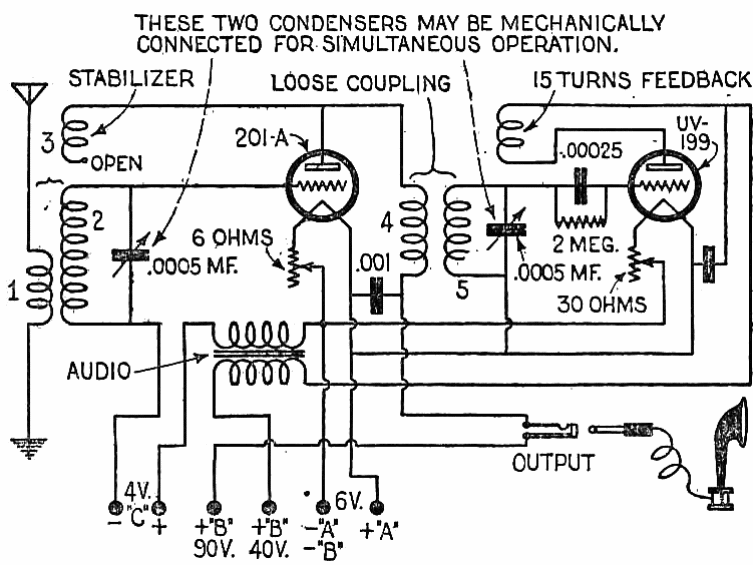

Speaker output reflex receiver (T1653E)

Found in a 1924 publication, this 2-valve receiver has a speaker output. Power comes from several batteries. Information about the coils is given.

| Clique na imagem para ampliar |
