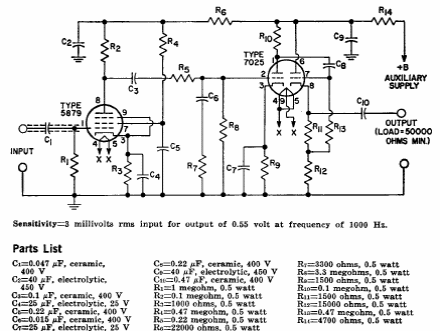

This circuit appears elsewhere on this site coming from other sources. The circuit shown is from a 1975 RCA tube manual. Resistor R14 depends on the auxiliary voltage taken from the apparatus with which it will function.
High fidelity preamplfier (T1549E)
- Details
- Written by: Newton C. Braga
