Baby Monitor (T1693E)

Details
Written by: Newton C. Braga

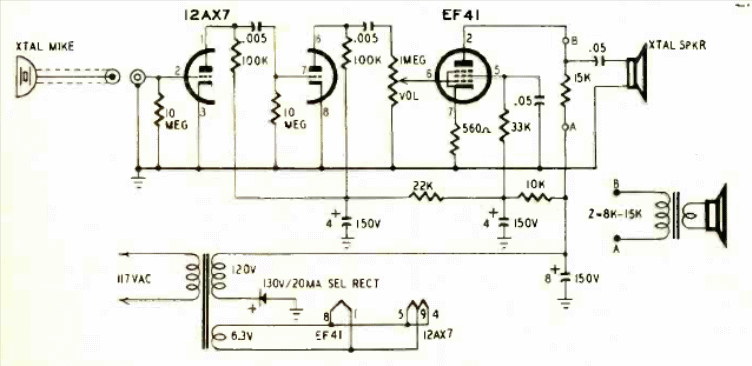

This two-tube circuit, one being a double, was found in Radio Electronics magazine from July 1958. The distance to the microphone depends on noise and losses. The cable must be shielded.




| Clique na imagem para ampliar |
