Amplifier output stage with a Pentode (T127E)
- Details
- Written by: Newton C. Braga

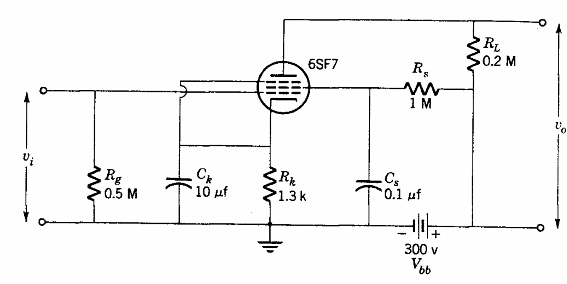

The circuit shown utilizes a pentode tube in a power output stage of amplification of low frequency signals. The circuit was obtained in documentation from the 1940s.
