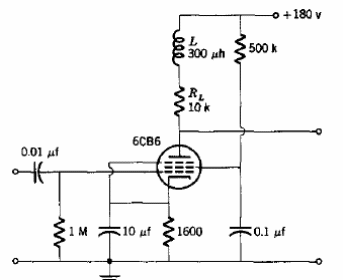

High Gain Amplifier (T137E)

This high gain amplifier stage uses a pentode valve. The circuit is from documentation of the 50's. The drained current is a few tens of milampères.
