Monostable with Double Triode (T172E)

Details
Written by: Newton C. Braga

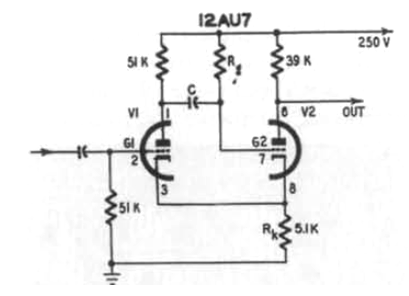

    Rg and C determine the timing of this circuit found in a former tube publication. The clock is applied to G1 and must have proper intensity and polarity. The circuit has a relatively low consumption.
