Noise Limiter (T205E)

Details
Written by: Newton C. Braga

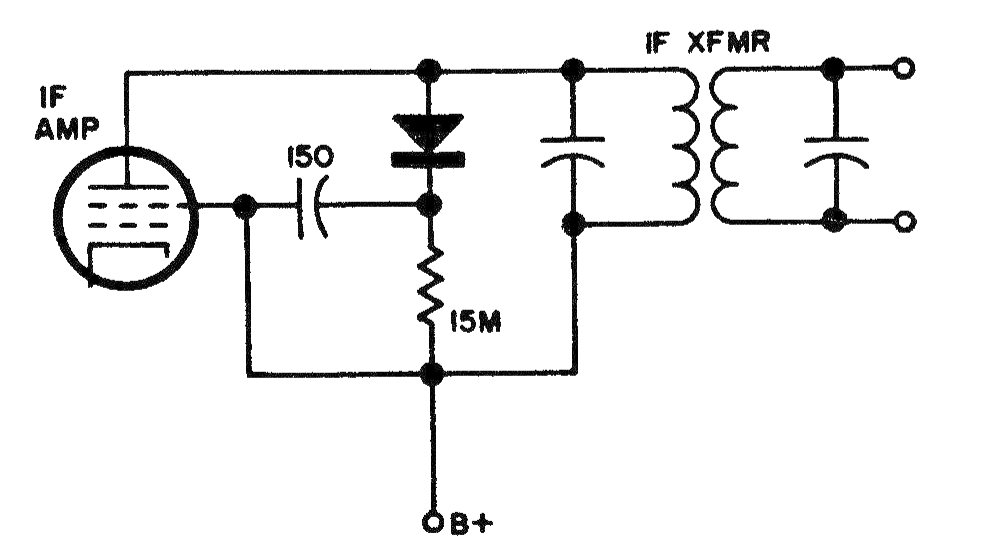

    The purpose of this circuit is to limit noise peaks on a radio receiver. The circuit is from an 80's documentation. The diode is commonly used and the circuit is applied to a receiver IF stage.
