Tube Voltmeter (T211E)

Details
Written by: Newton C. Braga

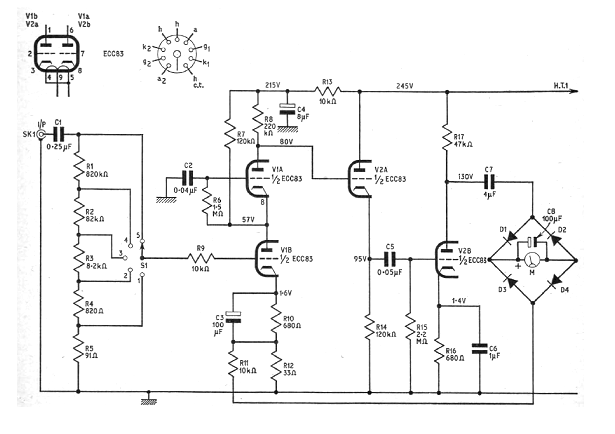

    The circuit shown is from a 1965 documentation. The power supply is 250 V and the accuracy will depend on the resistors used. The instrument is 1 mA full scale.
