1940 RCA Turntable Amplifier (T231E)

Details
Written by: Newton C. Braga

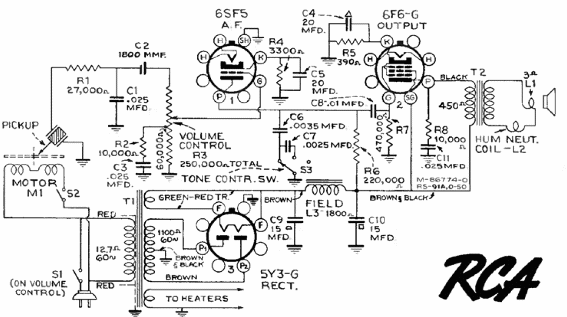

    This 1940 RCA 3-valve amplifier has a power transformer and an output transformer that are the critical components. The cartridge is crystal and the power is of the order of a few watts.
