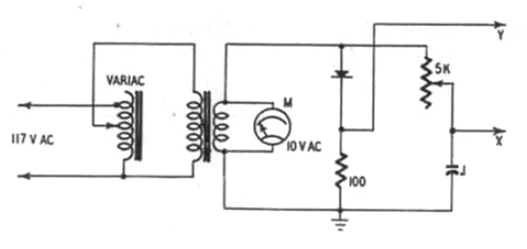

The presented circuit is indicated to show the curves of common diodes. We found this configuration in an old publication on oscilloscopes. The transformer is 10 V (9 to 12 V) winding with appropriate voltmeter or multimeter.
Circuit For See Diode Curves (T255E)
- Details
- Written by: Newton C. Braga
