By Board Modulator (T274E)

Details
Written by: Newton C. Braga

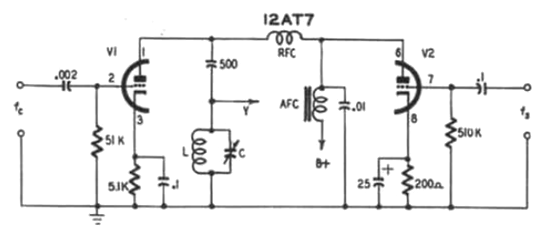

    This modulating circuit, originally intended for oscilloscope applications, was found in a 1950s documentation. The circuit is powered by 150 to 250 V voltages with a drained current of a few milliamperes.
