AGC for SSB (T288E)

Details
Written by: Newton C. Braga

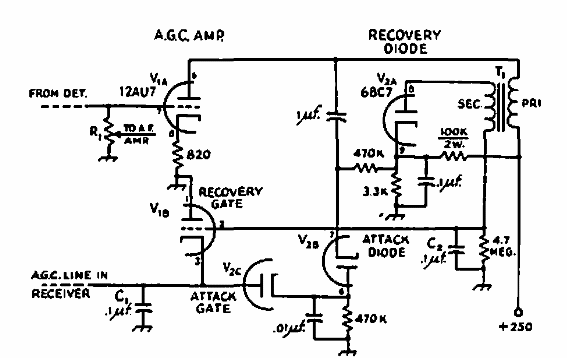

     This automatic gain control circuit for SSB was found in a 1970s documentation. The circuit does not include the power source, but we have the voltages that must be used.
