Pentode Mixer (T295E)

Details
Written by: Newton C. Braga

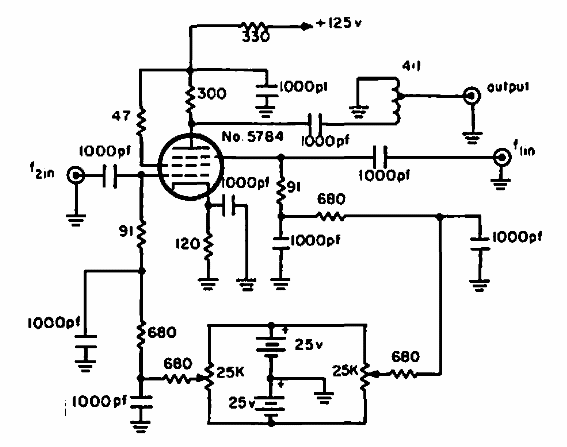

     This circuit is from 1964 documentation. Its purpose is to mix RF signals to obtain the beat frequency in communications applications.
