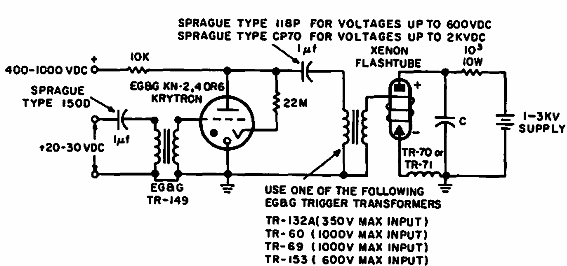

This circuit is from a 1966 documentation using a Krytron valve to excite a xenon laser. The circuit is powered by a voltage between 400 and 1000 V and the laser by voltage of 1 to 3kV.
LASER Driver (T303E)
- Details
- Written by: Newton C. Braga
This circuit is from a 1966 documentation using a Krytron valve to excite a xenon laser. The circuit is powered by a voltage between 400 and 1000 V and the laser by voltage of 1 to 3kV.
