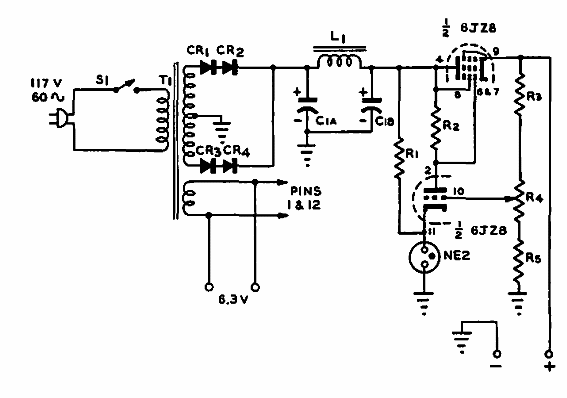

This circuit is from a 1966 publication. This power supply uses a dual tri-pentode compactron type in a configuration where we already have semiconductor diodes in the rectification. The transformer has a 400 V x 70 mA secondary.
250 V x 40 mA power supply (T323E)
