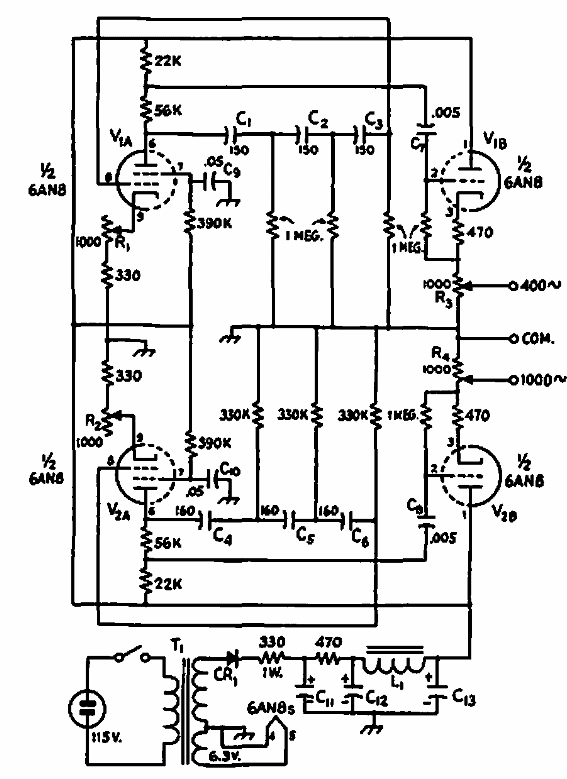

Two-Tone Audio Generator (T326E)

This 1965 circuit generates 250 to 2,000 Hz tones with quality sine waveform. The power supply is not given and the tubes are of well known types.
