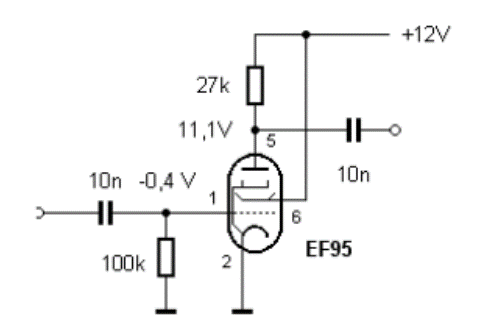

Low frequency stage with the EF95 (T334E)

Details
Written by: Newton C. Braga



    This circuit is from a current experimental tube kit. See the low supply voltages. The circuit is suitable for amplification of audio signals with good gain.
