Two Stage Amplifier (T340E)

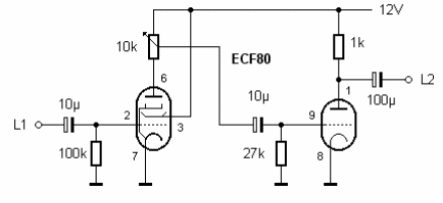

This amplifier circuit is indicated in a tube experiment kit and is powered by only 12 V. The circuit has high impedance input and output.

Ultrasonic Oscillator (NI008E)
The 50 kHz signal generated by this circuit is applied to a low impedance inductive transducer. A...
Amplifier with the 4049 (CB4770E)
This different audio amplifier was found in a 90's Electronic Design. The circuit uses components...
Analog-to-Digital Converter – 555 (NI024E)
This circuit converts a resistance in the range between 1 k ohm and 1 MΩ to a signal in a...
