Two Stage MW Radio (T343E)

Details
Written by: Newton C. Braga

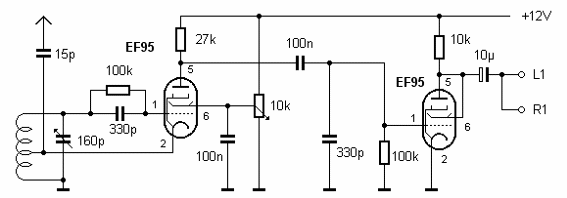

    This experimental radio is from a current kit with tubes and contact matrix. The circuit is powered by 12 V and for the medium wave range the coil is as described in the previous design.
