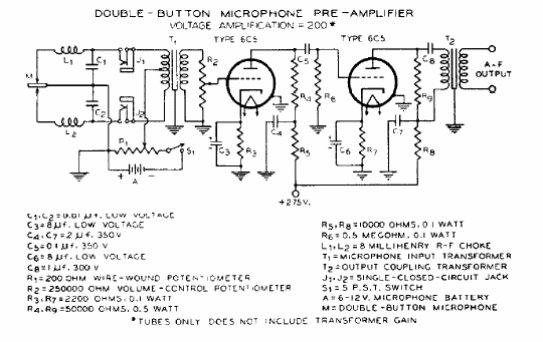

Double button microphone preamp (T352E)

This circuit was obtained in the 1937 RCA tube manual. Tubes are well known types that can even be obtained today. The power source is not given.
