Motorboating free amplifier (T356E)

Details
Written by: Newton C. Braga

Motorboating free amplifier (T356E)

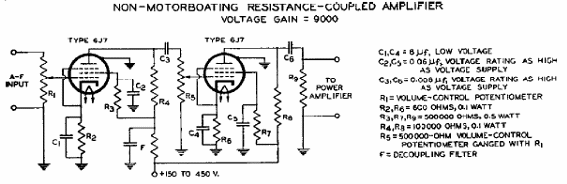

     This circuit is from a 1937 RCA manual. The tubes are of well-known types and the power supply is not supplied.
