3 W Stereo Amplifier (T368E)

Details
Written by: Newton C. Braga

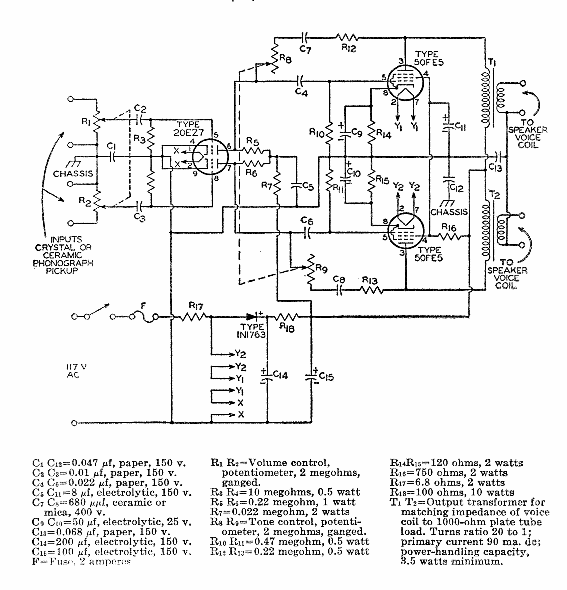

    This 3.5 W circuit per channel was found in the 1961 RCA tube manual. The circuit is power grid directly rectified without a power transformer
