Microphone 8 W amplifier (T369E)

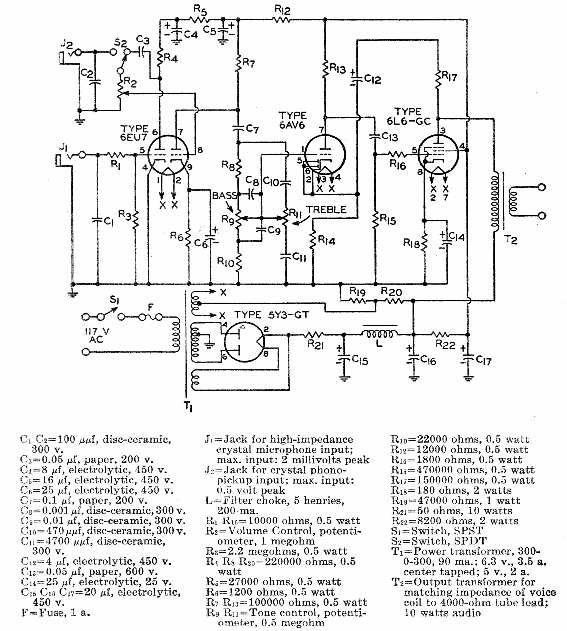

This circuit was found in the 1961 RCA tube manual. The 4-tube circuit is suitable for microphones and record players with high impedance input.
