Two-channel mixer (T372E)

Details
Written by: Newton C. Braga

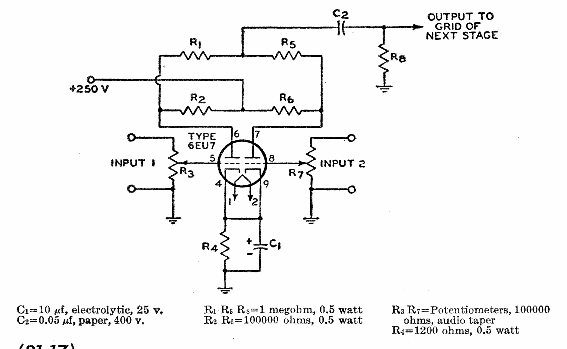

    This mixer circuit was found in the 1961 RCA tube manual. The gain for each triode is approximately 20 times. The input impedance is high.
