Full wave diode detector (T418E)

Details
Written by: Newton C. Braga

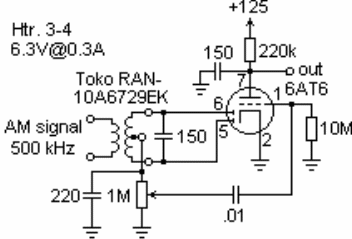

     This detector configuration for the medium and short wave (AM) range was used in many old tube radios. We found this configuration in a modern tube experiment book.
