Crystal oscillator with the 42 tube (T436E)

Details
Written by: Newton C. Braga

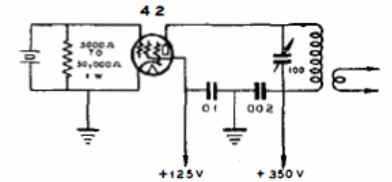

    In the figure we have a crystal oscillator with a 42 tube. The circuit is from a 1935 Radio Handbook. The high voltage source is not provided.
