Servo amplifier (T460E)

Details
Written by: Newton C. Braga

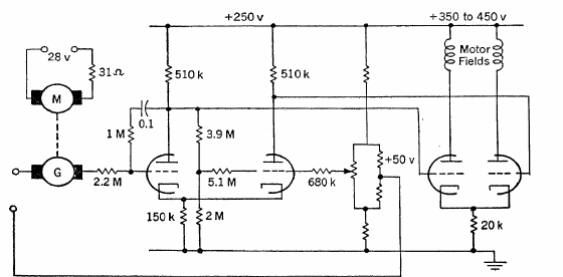

     This circuit was found in a 1948 MIT publication. It uses two double triodes and has a high voltage supply. A 28V servo motor is used.
