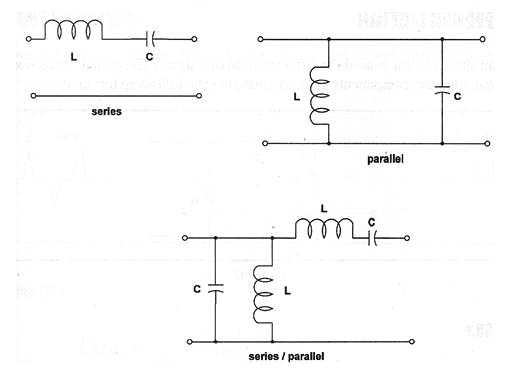

These are networks formed by coils and capacitors as shown in the figure bellow. These circuits present a low impedance to a certain frequency bandwidth.
Formula 1
Where:
fc is the tune frequency or central frequency in hertz (Hz)
π = 3,1416
L is the inductance in henrys (H)
C is the capacitance in farads (F)
