Rain Alarm (CB6267E)

Details
Written by: Newton C. Braga

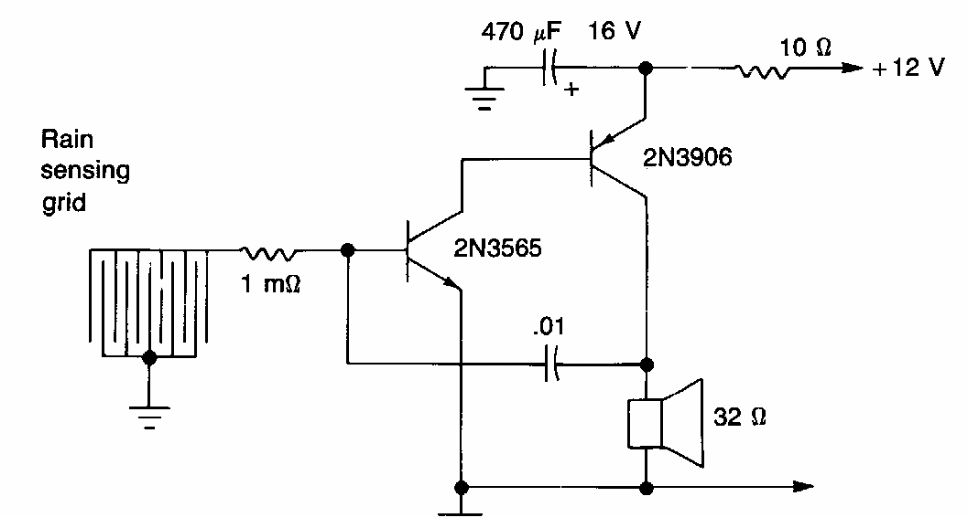

     We find this circuit in an old documentation, but it can be made using modern transistors. The circuit trips, producing a continuous sound when the sensor is wet. The 1 mOhm resistor is actually 1 Mohm.
