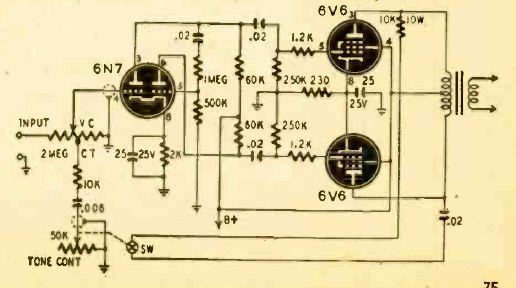

This amplifier was found in a Radio Craft from March 1948. The output is of good power by using the 6V6 tubes in counterphase. The power supply must provide at least 250V.
Audio Amplifier (T1249E)
- Details
- Written by: Newton C. Braga
This amplifier was found in a Radio Craft from March 1948. The output is of good power by using the 6V6 tubes in counterphase. The power supply must provide at least 250V.
