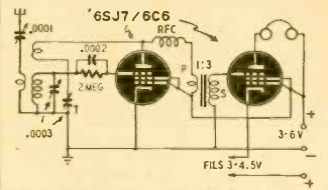

With the transmitter given in the next circuit we have a tube receiver that can operate in the short-wave band determined by the coils. The headphone must be high impedance. Note the supply voltages.
s Receiver for transceiver (T1302E)
