4-tube reflex (T1662E)

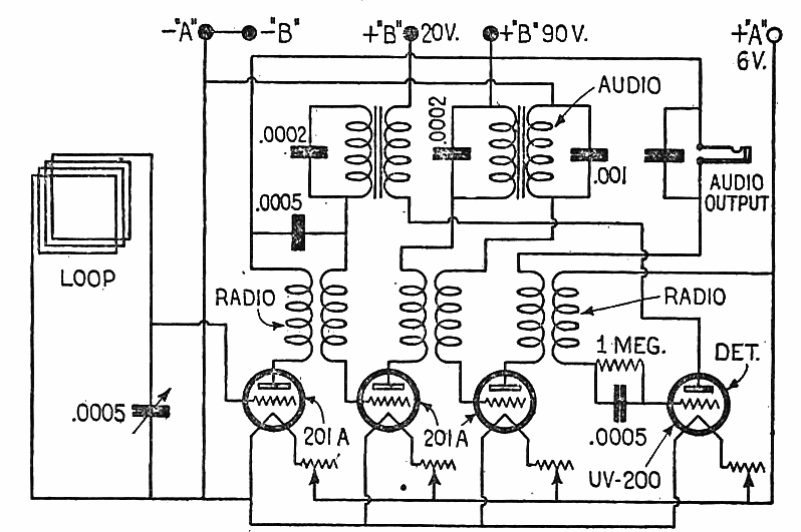

This circuit that uses a loop antenna was found in a 1924 publication. The circuit has several supply voltages and sets of audio and RF coils.
