Power Supply (CB953E)

Details
Written by: Newton C. Braga

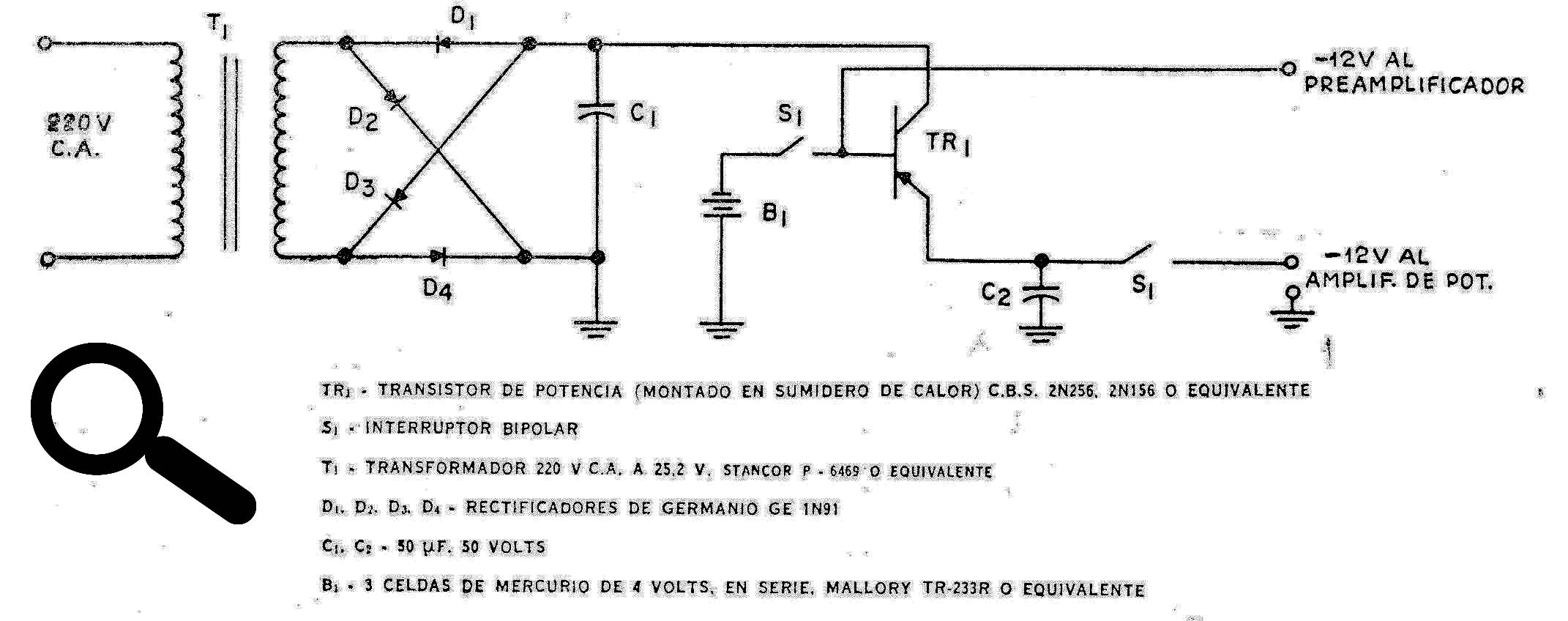

This Power supply sources from 500 to 1,000 mA according the transformar and was found in a publication of the year 1958. The diodes can be now the 1N4004 and the transistor should be mounted on a heatsink.
