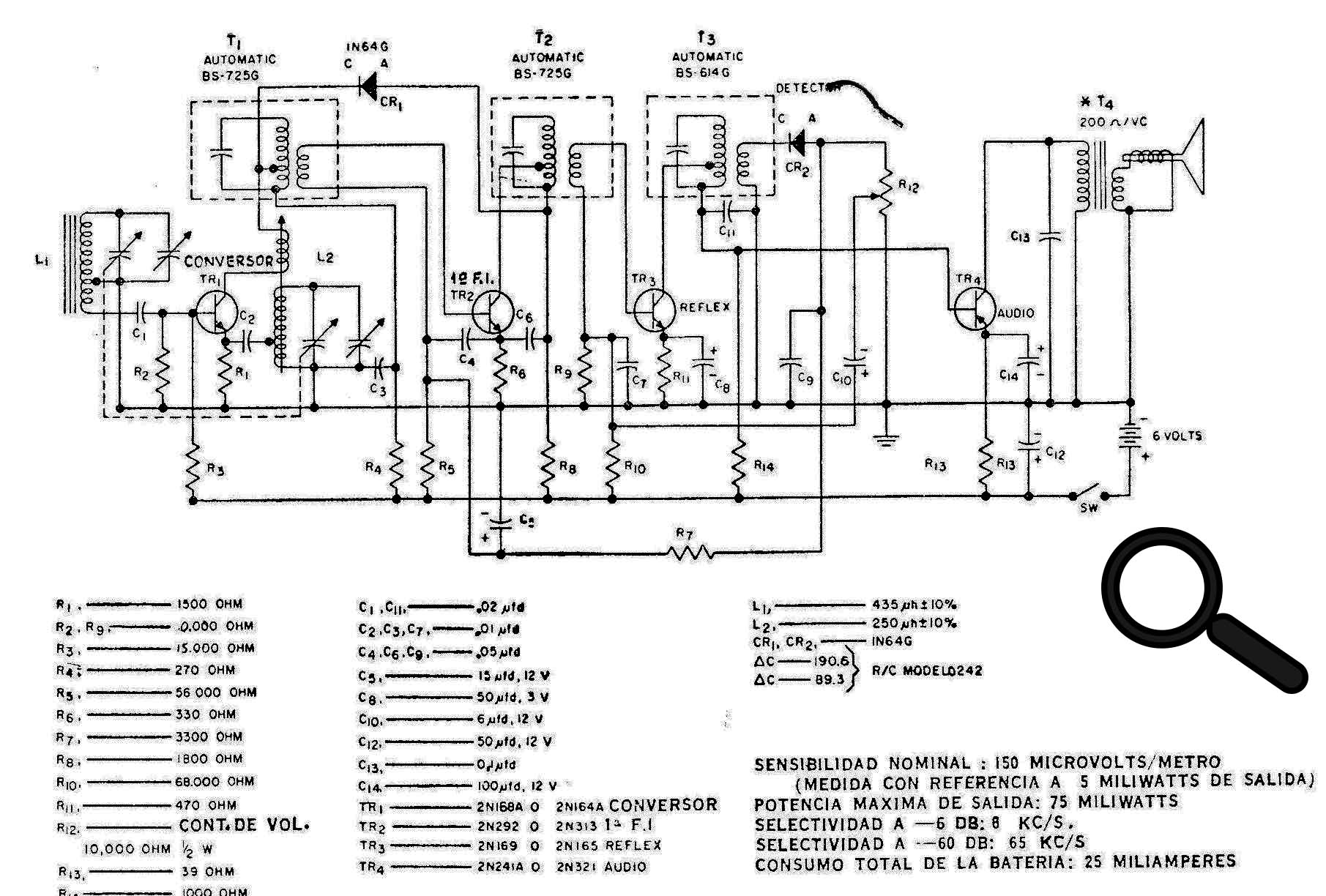

Superheteredyne MW Receiver (CB962E)

Details
Written by: Newton C. Braga

This circuit, found in a 1958 magazine, is for reference only, since the components are not easy to find today. The transistors are germanium types and power supply is made by common cells.
