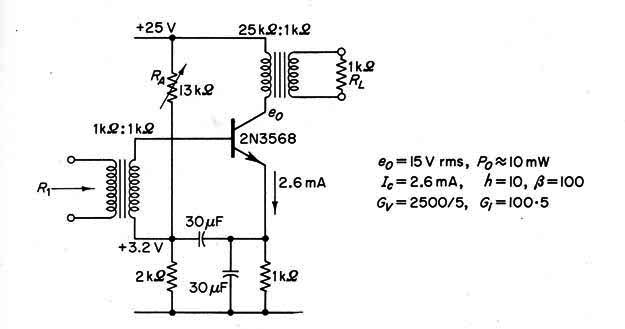

This is stage is transformer coupled and was found in na old publication of the year 1958. The transformers are not easily found today and the transistor is a germanium type. The circuit is for reference only.
Transformer Amplifier Stage (CB966E)
- Details
- Written by: Newton C. Braga
