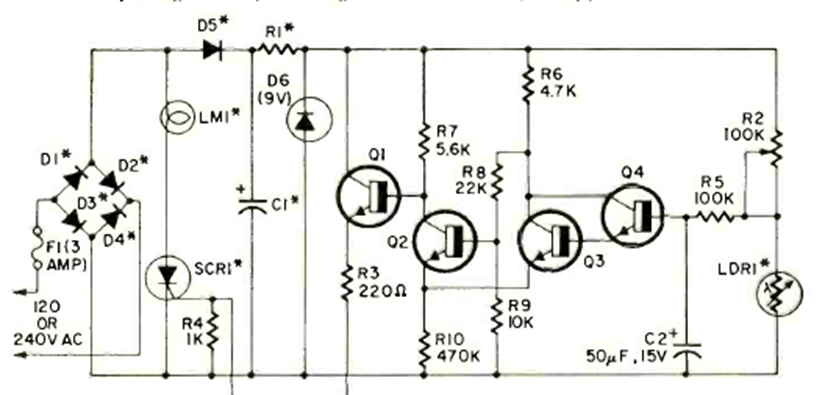

This fast-acting circuit was found in the July 1969 Radio Electronics magazine. The trigger point is adjusted with a potentiometer. The diodes in the bridge are rated according to the lamp power.
| Clique na imagem para ampliar |
Light trigger with Schmitt and SCR (CB23963E)
- Details
- Written by: Newton C. Braga
