Multimeter Amplifier (CB22540E)

Details
Written by: Newton C. Braga

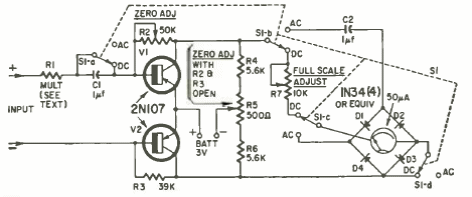

The purpose of this amplifier that we found in the Radio Electronics magazine of October 1952 is to increase to 200 kohm/V the input resistance of an instrument in measuring voltage.
