Booster for walkie talkie (CB23769E)

Details
Written by: Newton C. Braga

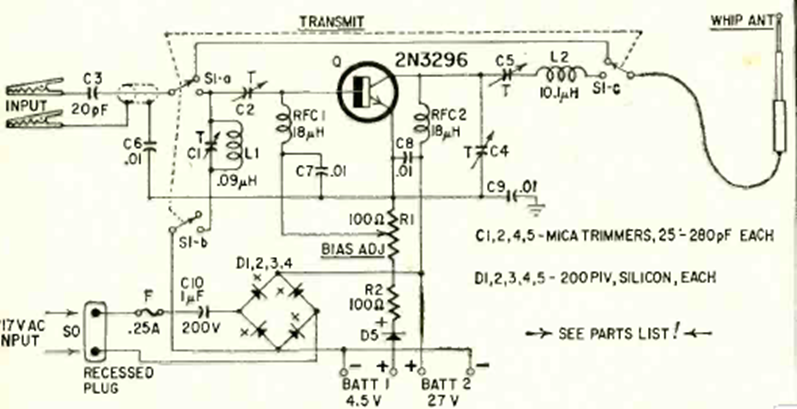

The purpose of this circuit is to increase the power and range of a small walkie talkie. The circuit is from a Radio Electronics from March 1967. The RF transistor is from the time. Note the use of a 27 V battery, which is uncommon these days.




| Clique na imagem para ampliar |
