50W Booster (CB23944E)

Details
Written by: Newton C. Braga

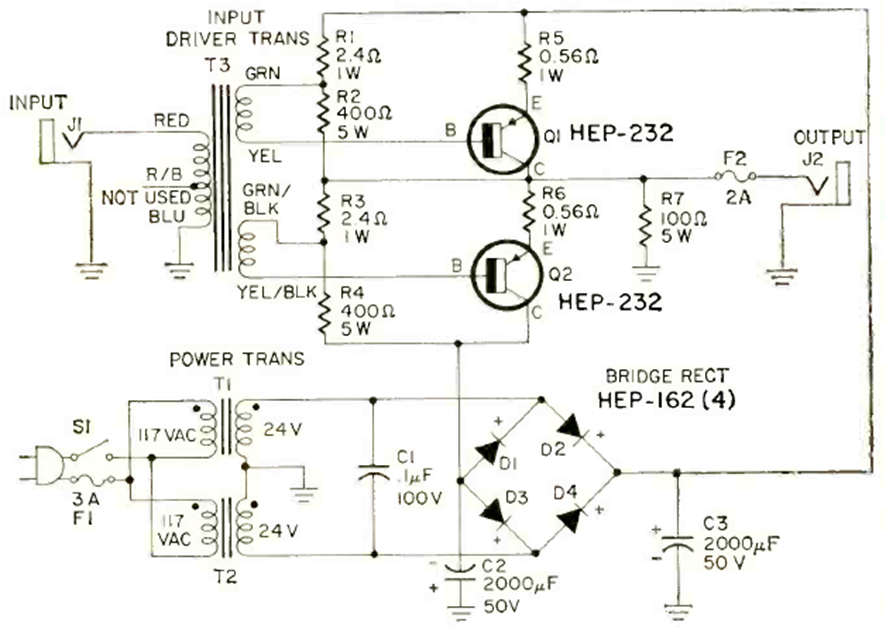

This PNP transistor power stage was found in the May 1969 issue of Radio Electronics magazine. The circuit uses a transformer for excitation and requires 10W input for full output power.




| Clique na imagem para ampliar |
