Current indicator (CB22132E)

Details
Written by: Newton C. Braga

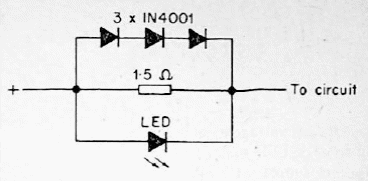

In this circuit the voltage across the LED is limited by the diodes. The maximum current also depends on the resistor.
