Radio without power (CB22163E)

Details
Written by: Newton C. Braga

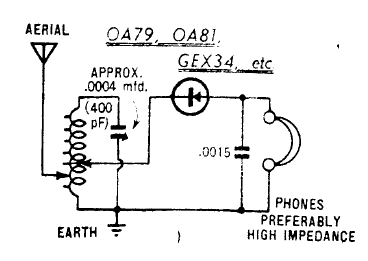

This crystal radio or galena was found in an English documentation from the 70's. The diode must be germanium and the headphone high impedance, at least 2k.
