Music Synthesizer VCO (CB24743E)

Details
Written by: Newton C. Braga

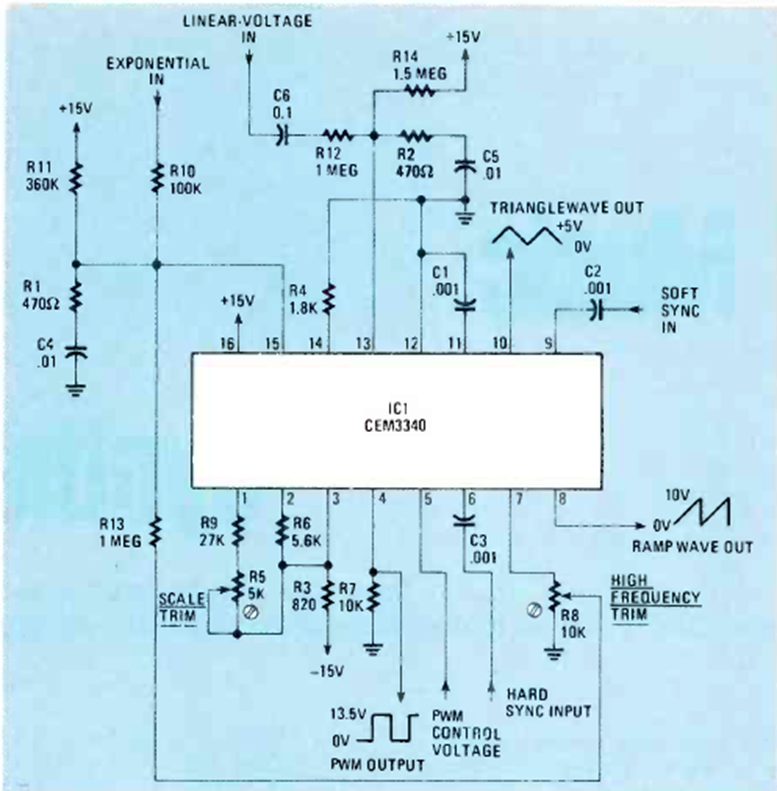

This circuit appeared in the May 1983 issue of Radio Electronics magazine. It is based on the dedicated integrated circuit CEM3340. The circuit provides signals with various waveforms.
