Beeper (CB24562E)

Details
Written by: Newton C. Braga

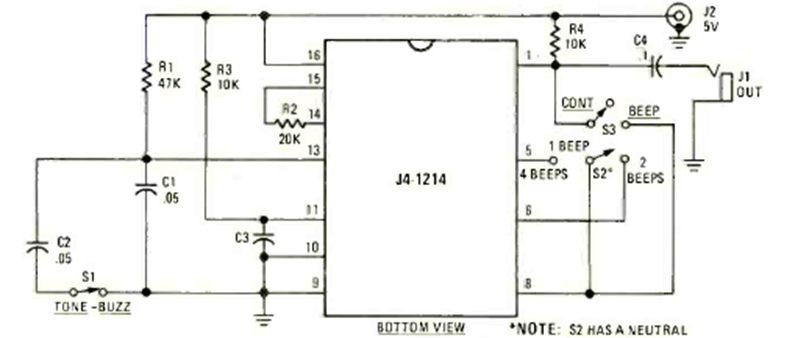

This programmable sound circuit was found in the July 1978 issue of Radio Electronics magazine. It uses an integrated circuit of the time dedicated to producing effects.




| Clique na imagem para ampliar |
