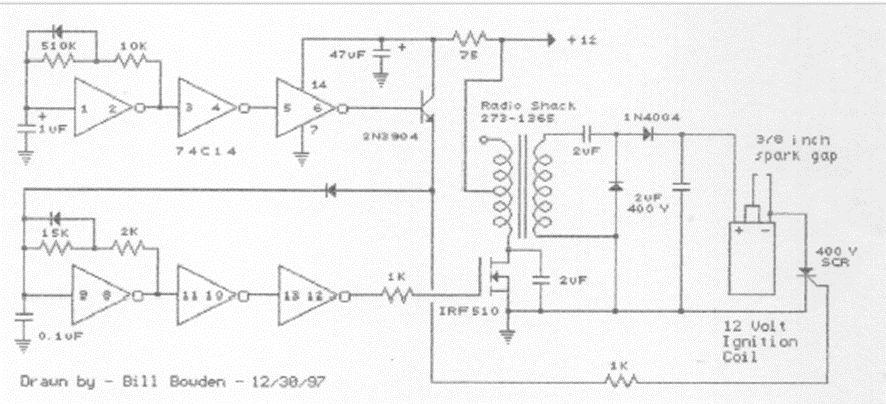

Capacitive discharge ignition (CB24441E)

Details
Written by: Newton C. Braga



We found this circuit in documentation from the 80s. The circuit is for cars with platinum. The power components must be equipped with heat sinks.
