VHF Booster (CB24316E)

Details
Written by: Newton C. Braga

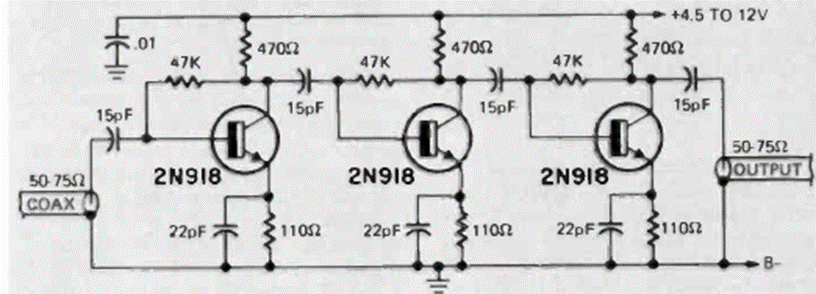

This untuned (aperiodic) amplifier circuit was found in the August 1974 Radio Electronics magazine. The transistors are period, and the board layout is critical.
