Proximity Switch (CB24800E)

Details
Written by: Newton C. Braga

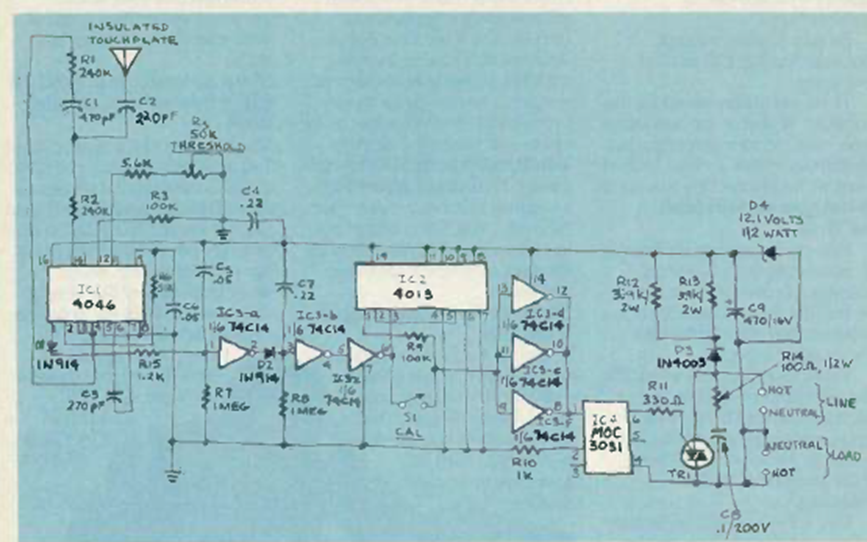

This somewhat complex circuit was found in the May 1984 issue of Radio Electronics magazine. The circuit drives a power stage with a triac for loads connected to the power grid.
