Pulse Generator (CB24579E)

Details
Written by: Newton C. Braga

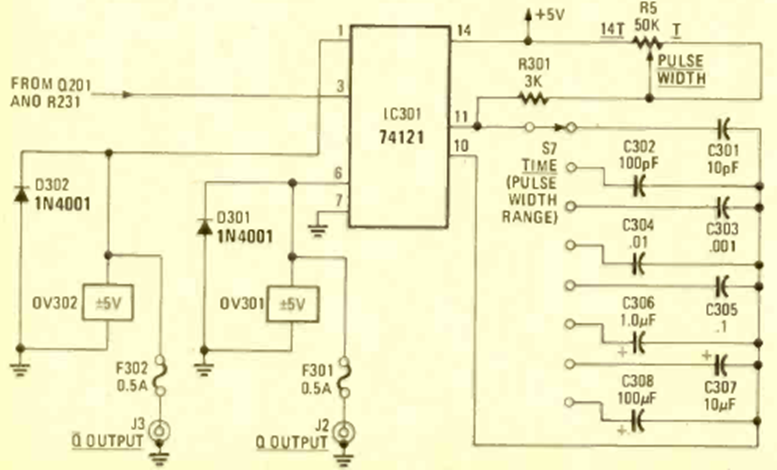

Described in an article in the March 1979 issue of Radio Electronics magazine, this generator was used in an audio test station. The frequencies are given by the capacitors.
