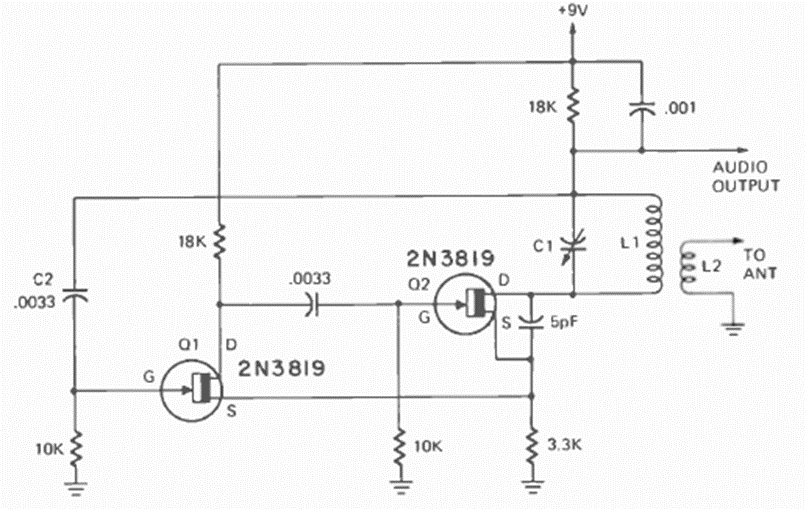

This circuit with an unusual configuration was found in the January 1974 issue of Radio Electronics magazine. The frequency is given by L1/C1, and the transistors admit equivalents.
| Clique na imagem para ampliar |
Super regenerative detector (CB24292E)
