Frequency Switch 1N4148 (CB24706E)

Details
Written by: Newton C. Braga

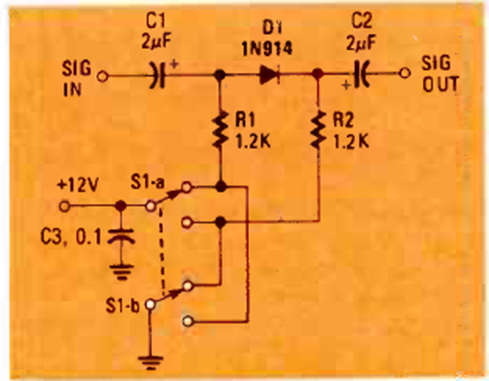

This circuit uses a common diode to switch a high frequency signal. The circuit was found in the July 1982 issue of Radio Electronics magazine. Other silicon diodes can be used.
