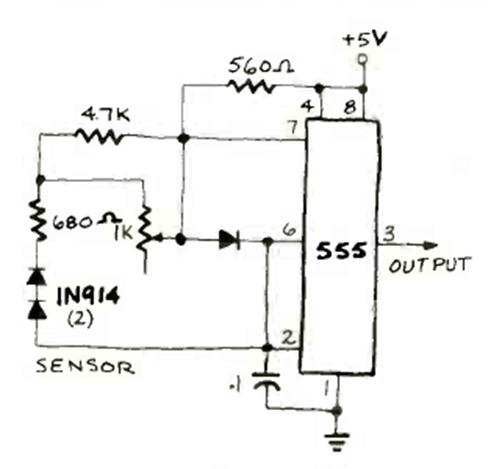

Two diodes are used as sensors in this simple thermometer. The circuit can be powered with voltages up to 12 V and not only 5 V as indicated. We found it in the Radio Electronics magazine of March 1980. With 5 V it can be used in TTL digital circuits.
